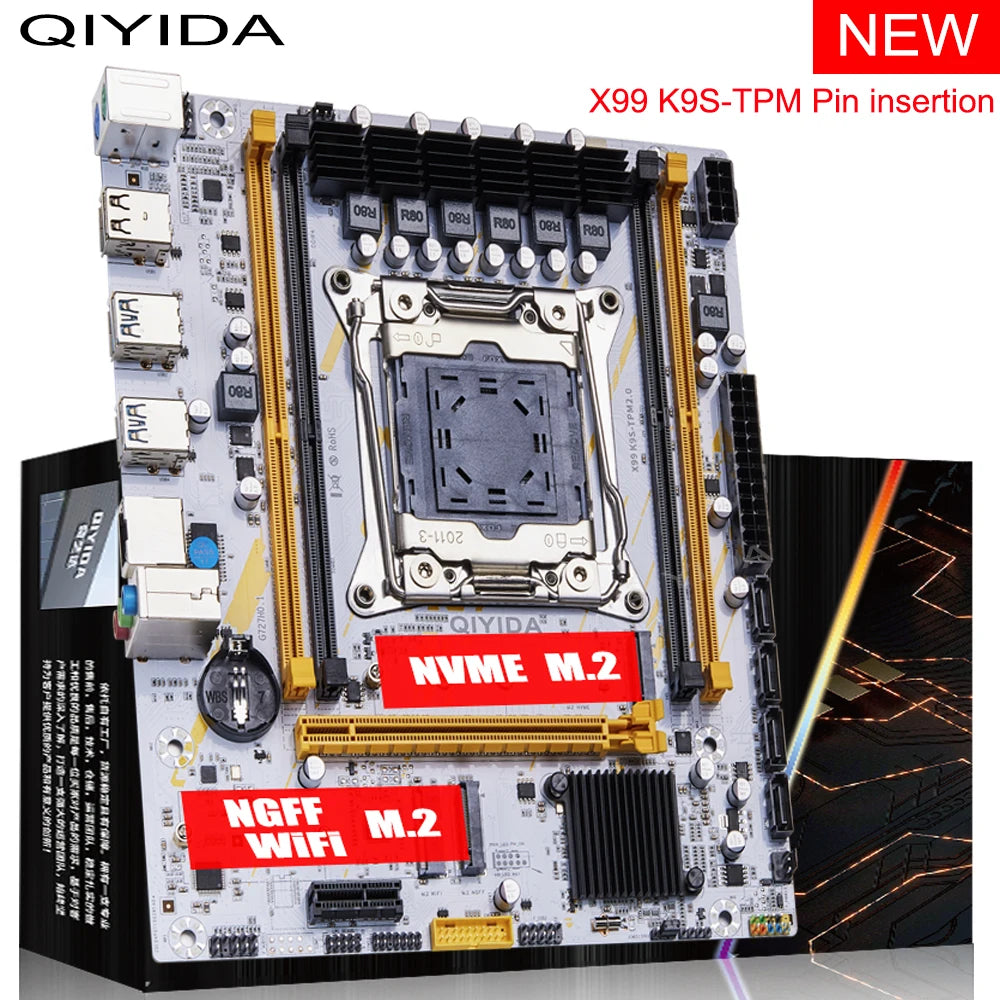

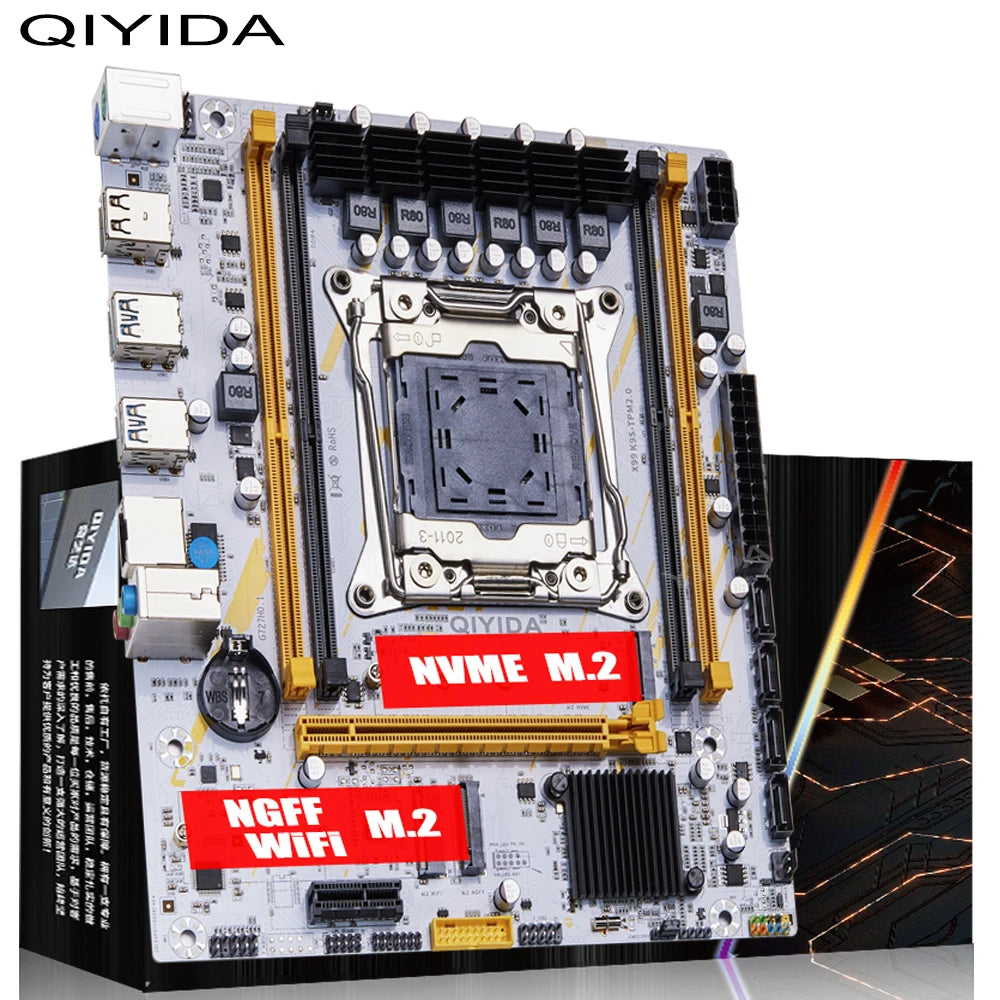

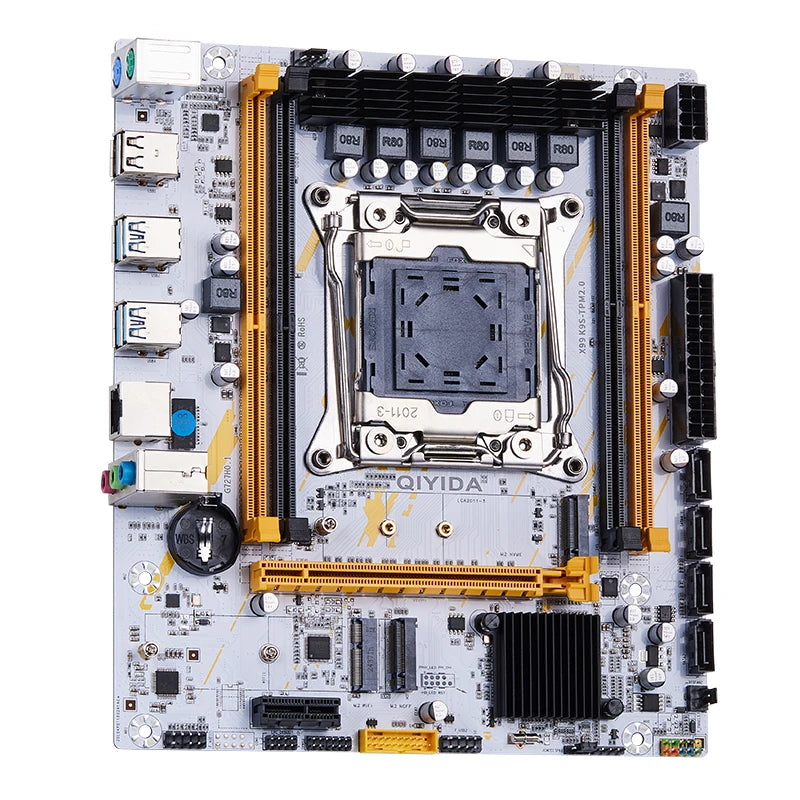

QIYIDA X99 motherboard LGA 2011 3 X99 C612chip with M.2 slot Support DDR4 Memory SATA3.0 USB3.0 PCI16X
QIYIDA X99 motherboard LGA 2011 3 X99 C612chip with M.2 slot Support DDR4 Memory SATA3.0 USB3.0 PCI16X
Couldn't load pickup availability

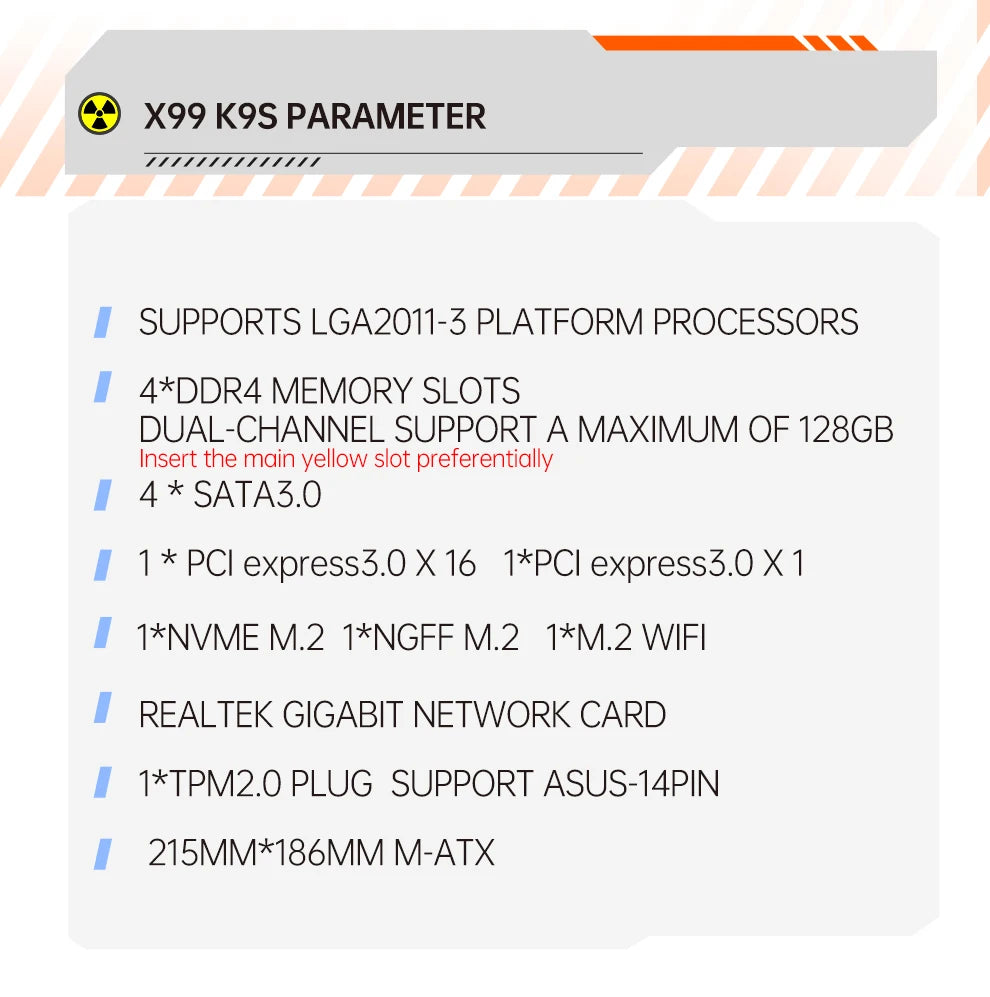

SPECIFICATIONS
Application: Desktop

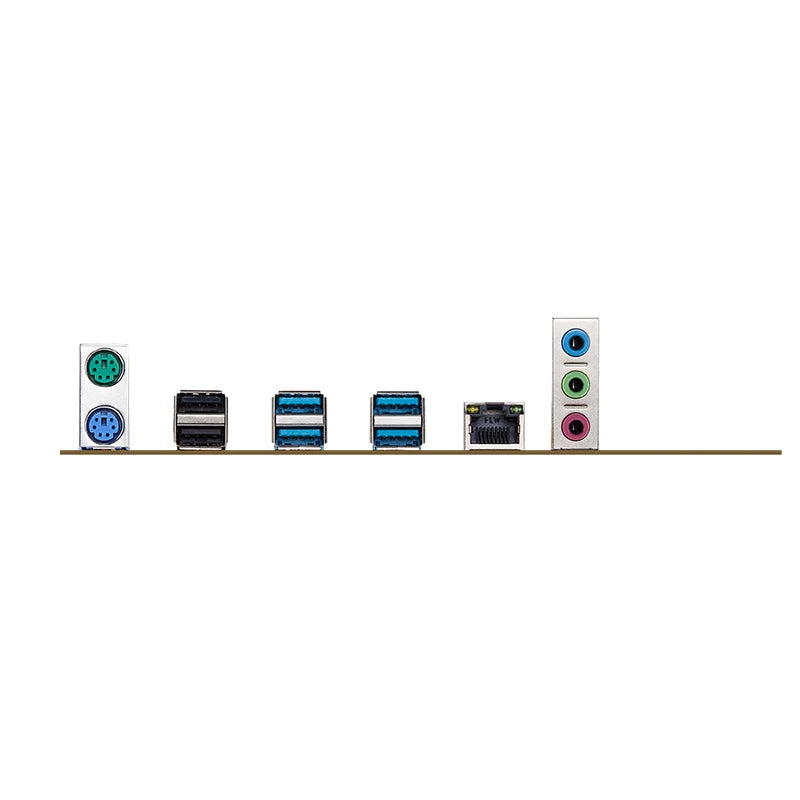

Back I/O Ports: 1x RJ45
Brand Name: QIYIDA
Chipset: Intel X99
Chipset Manufacturer: Intel
Choice: yes
Form Factor: Micro-ATX
Hign-concerned Chemical: None
Maximum Ram Capacity: 128 GB
Number Of Memory Slots: 4
Number of M.2: 2

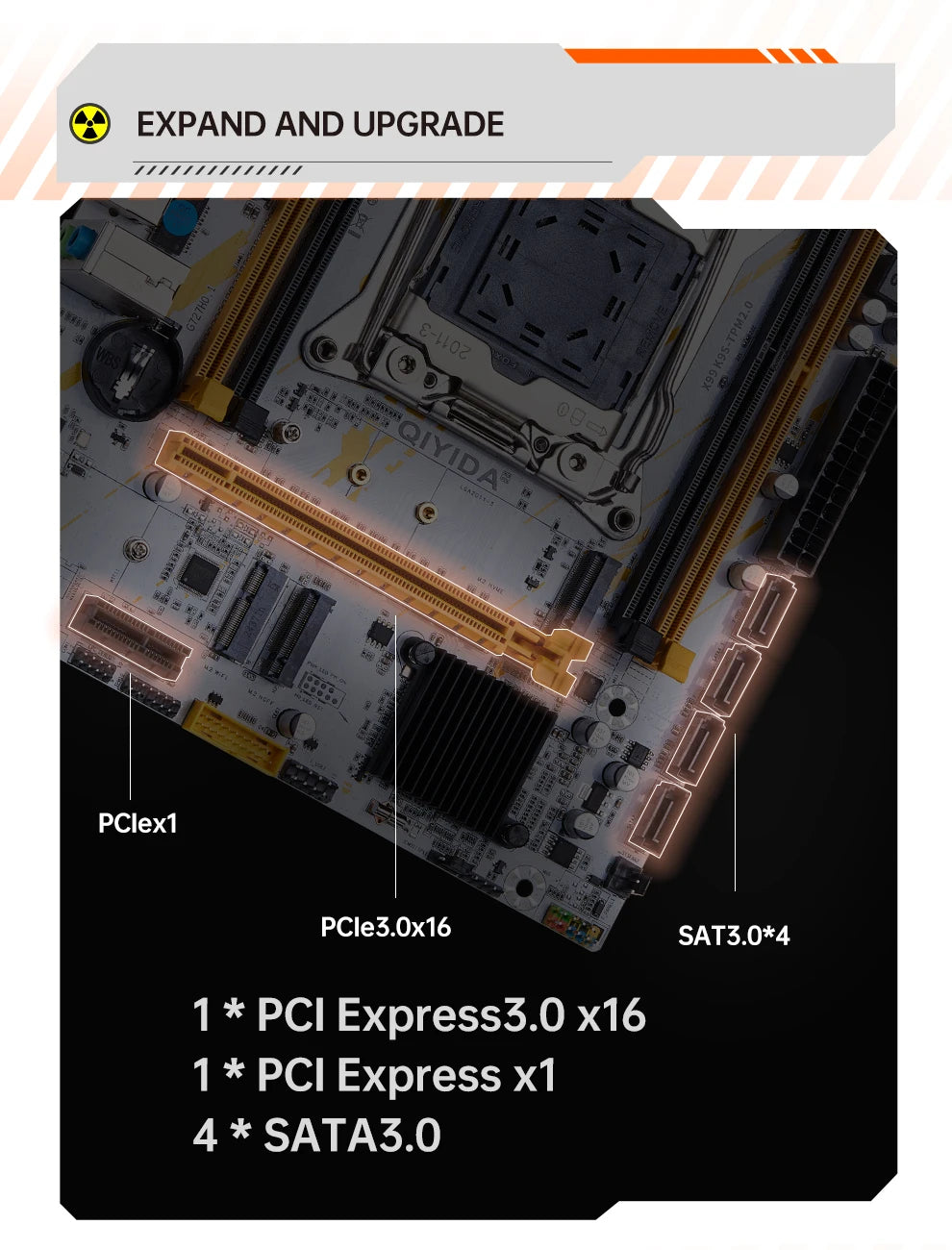

Number of PCI: 2
Number of PCIe x 1: 1
Number of PCIe x 16: 1
Onboard LAN: 1x RJ45
Origin: Mainland China
PCI - E standards: PCI - E 3.0
Package: Yes
Processor compatibility: Intel Xeon,Intel 0thers,Intel Xeon E Series
RAID Supported: No
Socket Type: LGA 2011-3
Special Features: Cooling Armor
Storage Interface Type: SATA 2,SATA 3,M.2 (NVMe)
Support Memory Type: DDR4
Support USB Type: USB 2.0,USB 3.0
Usage Scenario: Gaming,Audio & Video,Household,Office,Design,Video Production,Industrial Computer,Workstation,Server,Mining,Scientific Computing,3-D Modeling,Video Rendering,MaxCompute,others,HPC
With CPU: No

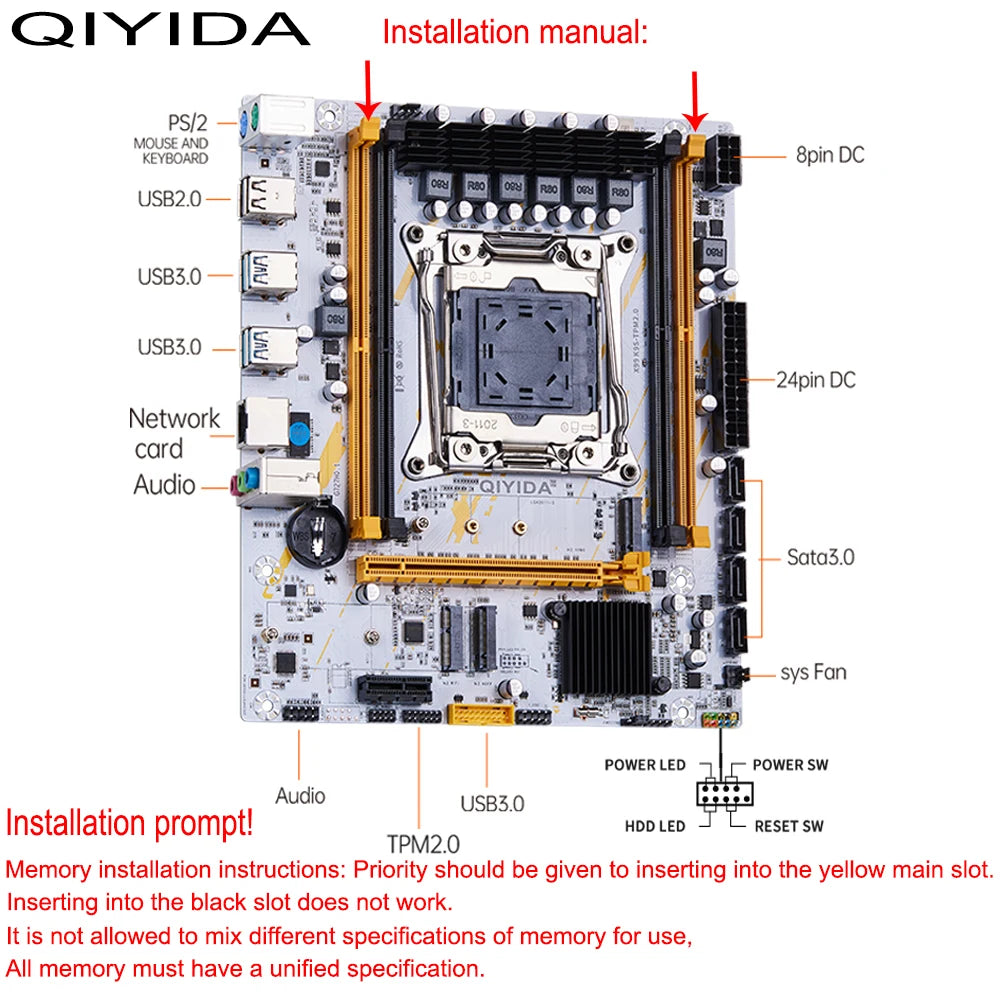

Installation prompt!
Memory installation instructions: Priority should be given to inserting into the yellow main slot.
Inserting into the black slot does not work.
It is not allowed to mix different specifications of memory for use,
All memory must have a unified specification.

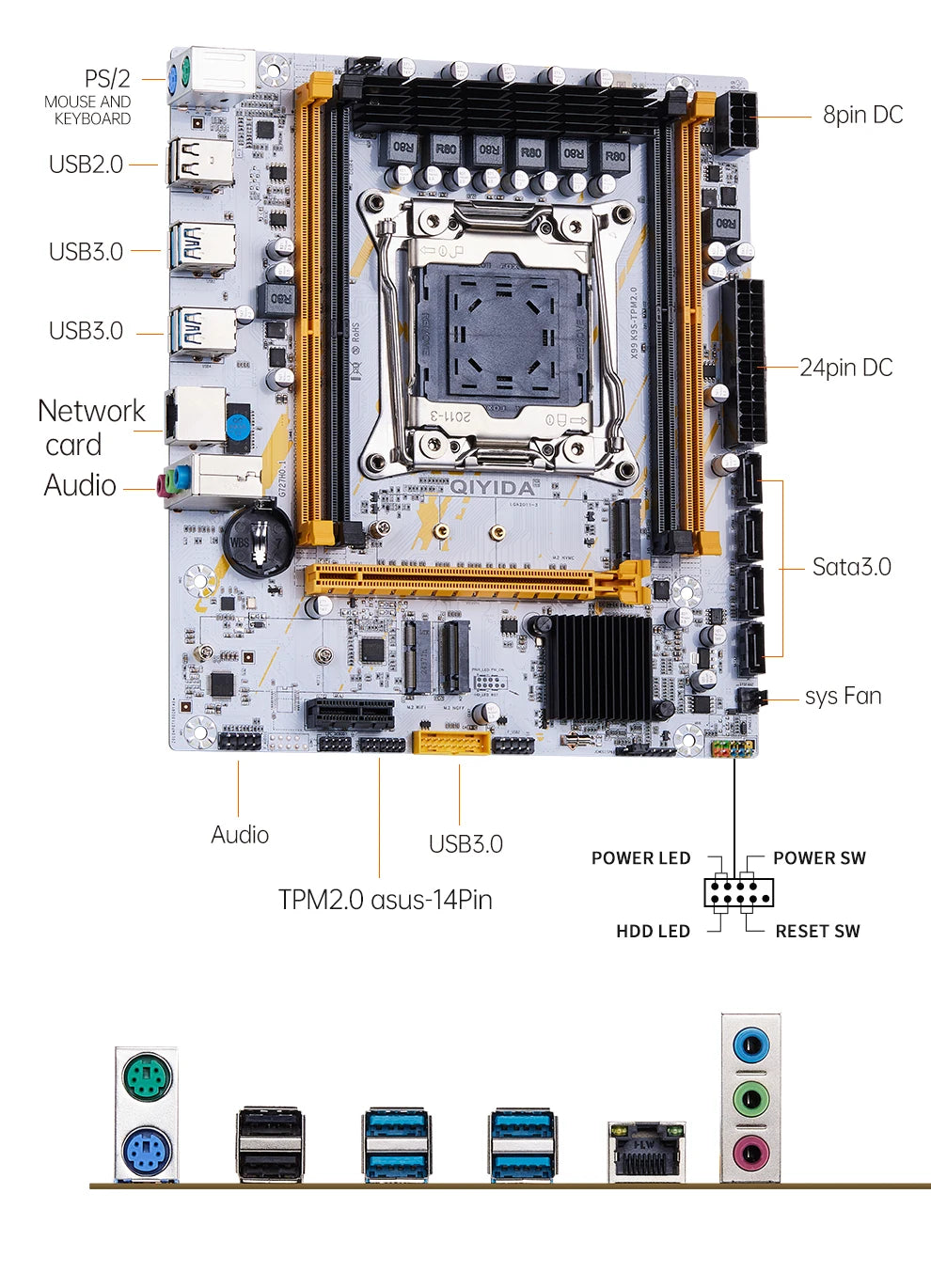

Model:QIYIDA X99
Condition: Full new
CPU socket: LGA 2011-3
Structure: M-ATX
VGA socket: PCI-E X 16
Power port: 24Pin+8pin
CPU supported:Support 2011-3 All-series CPU( Include V3, V4 series)
Memory socket: 4* DDR4
Max memory capacity: 4* 16G DDR4 2133/2400MHz/2666MHz/3200MHz
Memory type supported: non-ecc/reg ecc/ecc
Integrated video card: No

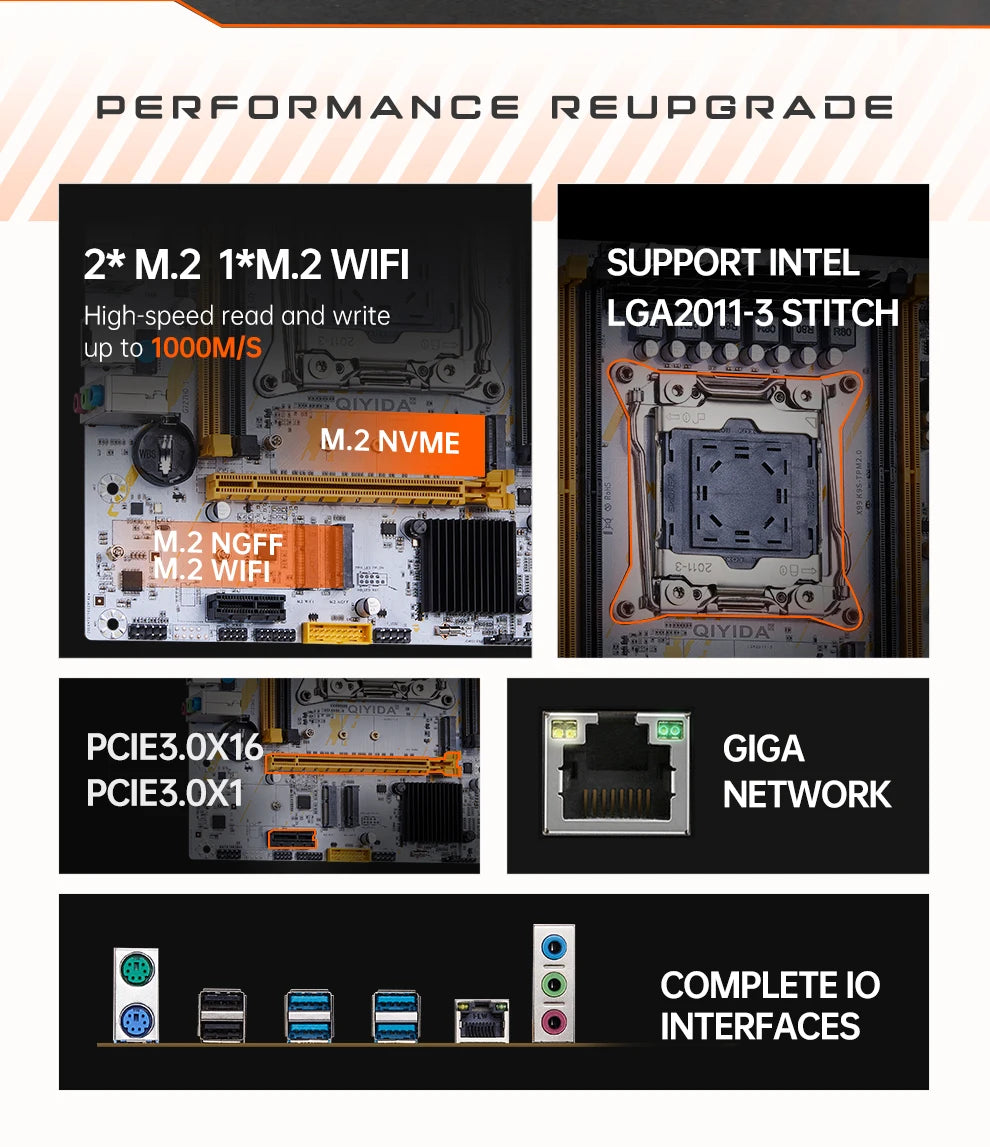

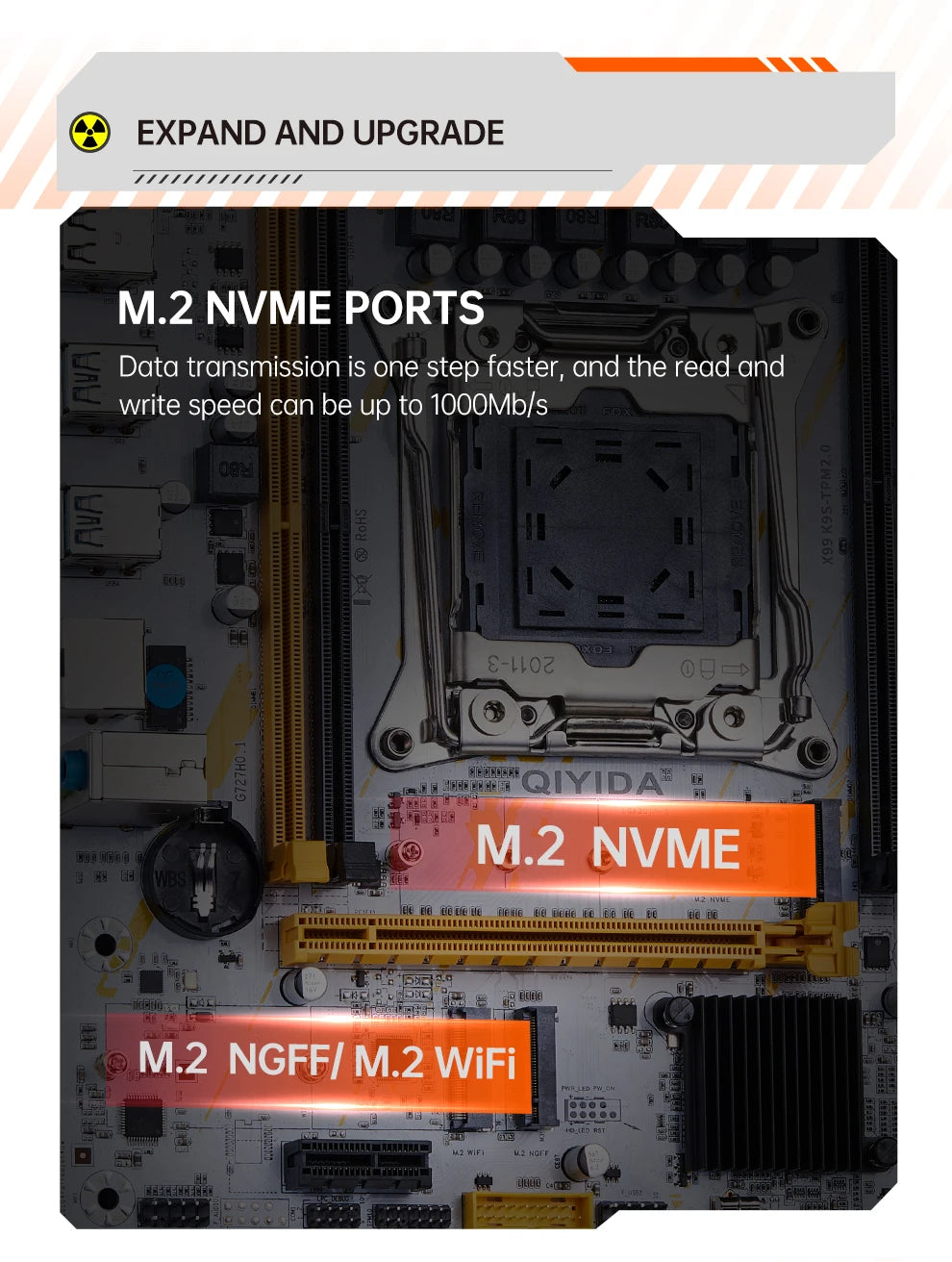

Support NVME/NGFF M.2. Note that they need to switch the jumpers on the motherboard
The motherboard chipset is
Motherboard dimension: 215mm*186mm
Note ：
that the new old models are sent randomly, the motherboard batches are different, and the appearance may be different.
Mind please don't buy!
Noticed: Same platform only different color and different batch. We send out by randomly.
Note:
1:The motherboard chips have difference band chips,because of the different product batches,we will send the goods by random,please refer to the actual product.
2:this planform needs powerful power supply. please make sure your power supply can enough to supports this planform.(at least 500wbrand power supply)
Notice for motherboard combine RAM
ALL RAM needs to install in slot#1and slot#4(yellow slot)priority
when 1RAM+motherbard (ram needs to install slot#1or #4.)
when 2RAM+motherbard (ram needs to install slot#1and #4.)
when 3RAM+motherbard (ram needs to install slot#1and #4.and#2or#3.)
when 4RAM+motherbard (install all slots)
The black ram slot of motherboard can't works alone.
Note:
1: The CR2032 battery in motherboard photos will be removed before shipping, as battery is forbidden at CN post and custom
2: Some motherboards may have little scratches or thermal paste or finger print on the metal bracket or other metal parts, this is normal, they could be caused in assembly at workshop or during testing. It does not mean they are refurbished, all qiyida store motherboards are full new as we stated.
3:On the basis of not bringing function changes to the motherboard, the factory would probably improve the motherboard external design, which would probably lead to some appearance difference between batches, please refer to the real-life object.

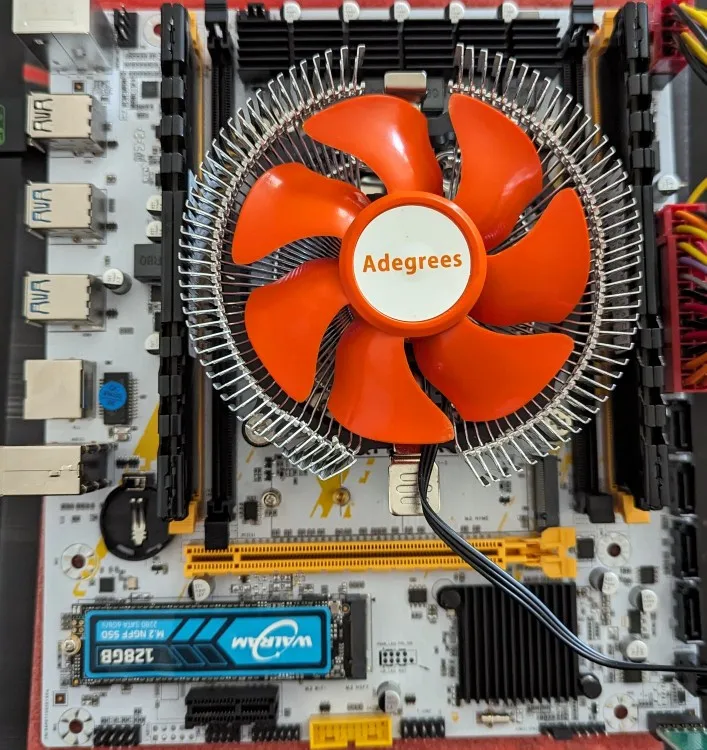

4: If a processor is included in your order, we will keep the processor in the processor socket after testing, and the thermal paste is also covered on the processor, so when you get your products, you can directly fix a CPU cooler on the processor and test the motherboard.
