SPECIFICATIONS

Application: Desktop

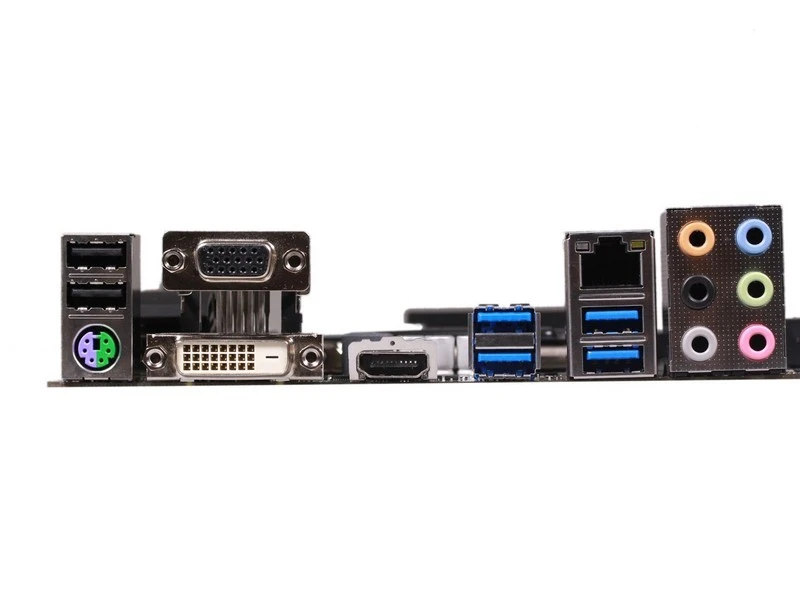

Back I/O Ports: 1x RJ45,VGA(D-Sub),HDMI 1.4,DVI-D

Brand Name: Gigabyte

Chipset: Intel Z97

Chipset Manufacturer: Intel

Choice: yes

Maximum Ram Capacity: 32 GB

Number of PCI: 4

Onboard LAN: 1x RJ45

Origin: Mainland China

PCI - E standards: PCI - E 3.0

Package: No

Processor compatibility: Intel 0thers

Quality Certification: ce

RAID Supported: No

Socket Type: LGA1150

Special Features: None

Storage Interface Type: SATA

Support Memory Type: DDR4

Usage Scenario: Enthusiast & Overclocking,Gaming,Audio & Video

With CPU: No

semi_Choice: yes

Motherboard chip

Integrated chipSound card / network card

Main chipset Intel Z97

Chipset Description Using Intel Z97 chipset

Audio chipIntegrated Realtek ALC887 8-channel audio chip

NIC chip Onboard Realtek RTL8111F Gigabit LAN

Processor specification

CPU TypeCore i7/Core i5/Core i3/Pentium/Celeron

CPU slotLGA 1150

Memory specifications

Memory typeDDR3

Memory slot4 x DDR3 DIMMs

Maximum memory capacity32GB

Memory descriptionSupports dual channel

DDR3 3100 (OC)/3000 (OC)/2933 (OC)/2800 (OC)/2666 (OC)

/2600 (OC)/2500 (OC)/2400 (OC)/2200 (OC)/2133 (OC)

/2000 (OC)/1866 (OC)/1800 (OC)/1600/1333MHz MHz memory

Expansion slot

PCI-E StandardPCI-E 3.0 Standard

Graphics card slot2 x PCI-E X16 slot;  2 x PCI-E X1 slot;

PCI slot2 x PCI slot

Storage interface6 x SATA III interface

I/O interface

USB interface8×USB2.0 interface (6 built-in +2 backplane);

6×USB3.0 interface (2 built-in +4 backplane)

External port 1×HDMI interface; 1×HDMI interface

PS/2 InterfacePS/2 mouse, PS/2 keyboard interface

Power socketA 8-pin, 24-pin power connector

Other interfaces1 RJ45 network interface / audio interface

Plate type

Main board typeATX

Dimensions 30.5×19 cm

Software Management

BIOS performance2 x 64Mbit flash

Use authorized AMI UEFI BIOS

Supports DualBIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Other parameters

Hardware monitoringsystem voltage detection

CPU/system temperature detection

CPU/System/Power Fan Speed Detection

CPU over temperature warning

CPU/System/Power Fan Failure Warning

CPU/system smart fan control

Multi-graphics TechnologySupports For AMD CrossFireX Technology

RAID function Supports RAID 0,1,5,10

Other Features Support Microsoft Windows 8.1/Windows 8/Windows 7
